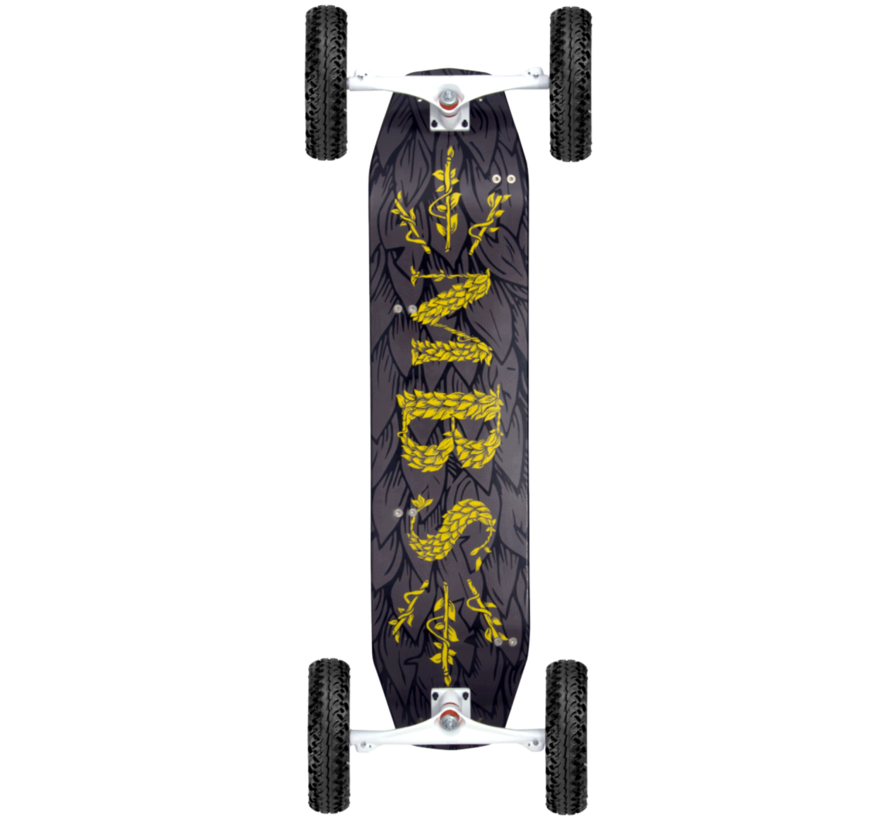

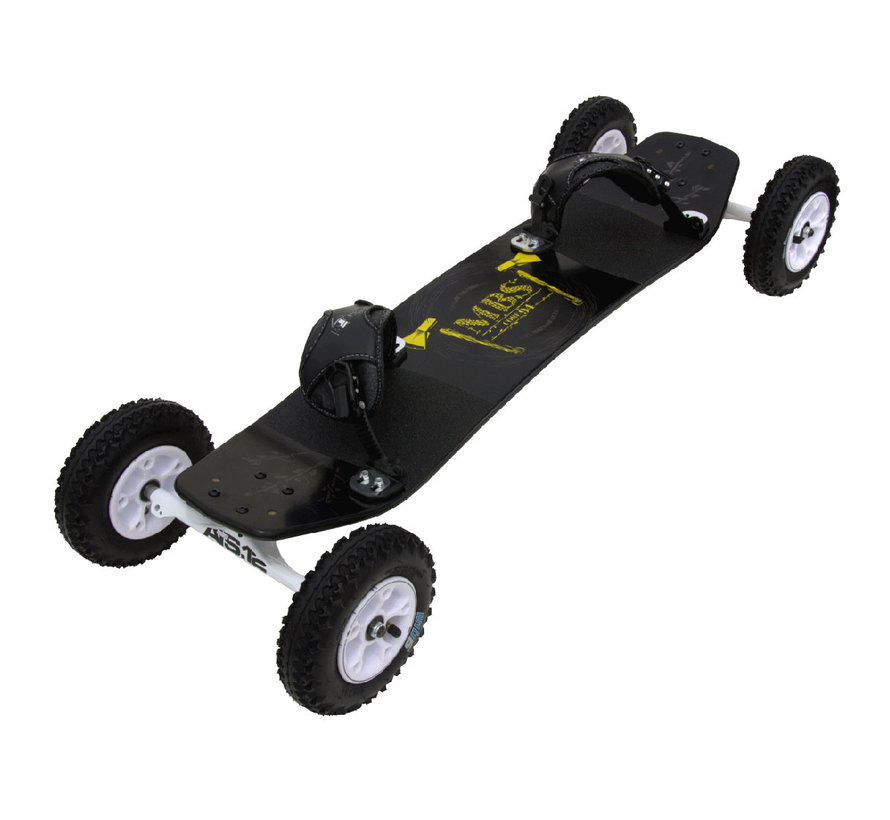

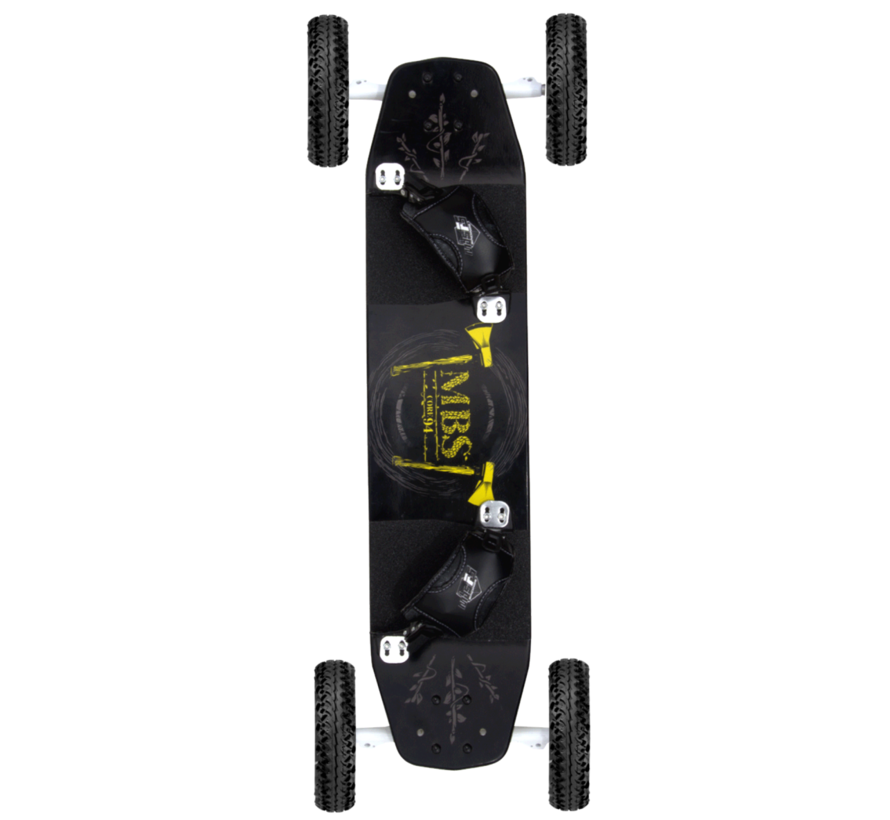

MBS Core 94 mountain board
The Core 94 is designed with kiters and lighter mountain boarders in mind. It is a lightweight and versatile board which will help you nail your first freestyle moves. For kiters - the lightweight design together with the grip provided by the T3 tires make it the perfect choice.
WHATS NEW?
The Core 94 combines the Core 90 and 95 in one model and gets some critical upgrades. The most obvious at first glance is the improvement from the F2 Velcro binding to our F5 ratchet bindings. This is first Core board to ever come stock with any ratchet binding, let alone bindings as strong, comfortable, and adjustable as the new F5.
Less obvious is the upgrade to our new ATS.12 trucks which move from 9.5mm to 12mm axles. That really reduces the chance of bending an axle and allows for standard 28mm x 12mm bearings.
COMPONENTS
Deck - Core 94 (Axe)
Trucks - ATS.12
Bindings - F5
Tires - T3
Hubs - FiveStar
Bearing - 12x28mm
TECH SPECS
Part Description - Core 94 (Axe)
Rider Style - Kite and Freestyle
Overall Weight - 5.9 (kg) / 13.0 (lb)
Overall Length - 108.0 (c) / 42.5 (in)
Axle to Axle Length - 88.0 (c) / 34.6 ( in)
Deck Construction - Powerlam (Fiberglass, Maple)
Deck Stiffness - Stiff
Graphic Material - Maple
Grip Tape - 46 Grit - Alum. Oxide
Deck Tip Angle - 20
Deck Length - 94.0 (c) / 37. (in)
Deck Width - 22.0 (c) / 8.7 (in)
Deck Weight - 1.9 (kg) / 4.1 (lb)
Truck Type - ATS. 12
Truck Material - Die-Cast Alum. Hanger and Base; Cromoly axle
King Pin - CrMo
Suspension - Orange Bushing
Axle Width - 40.0 (c) / 15.8 (in)
Axle Diameter - 12mm (Solid)
Hub Type - FiveStar
Color - Black
Accepts Bearing Size (OD) - 28mm
Bearing - 12x28mm
Tyre Type - T3 (8€³) - 200à—50
Tire Color - Black
Binding Type - F5
Hardware Type - Black Zinc / Nickel
Grab Handle - Drilling Required
Brake Compatible - Yes
Brake Included? - No
Assembly - Wheels Off Component Pack
Overall Length with Matrix - 114.4cm
Overall Length with Vector - 109.1cm
Overall Length with ATS - 108.7cm
